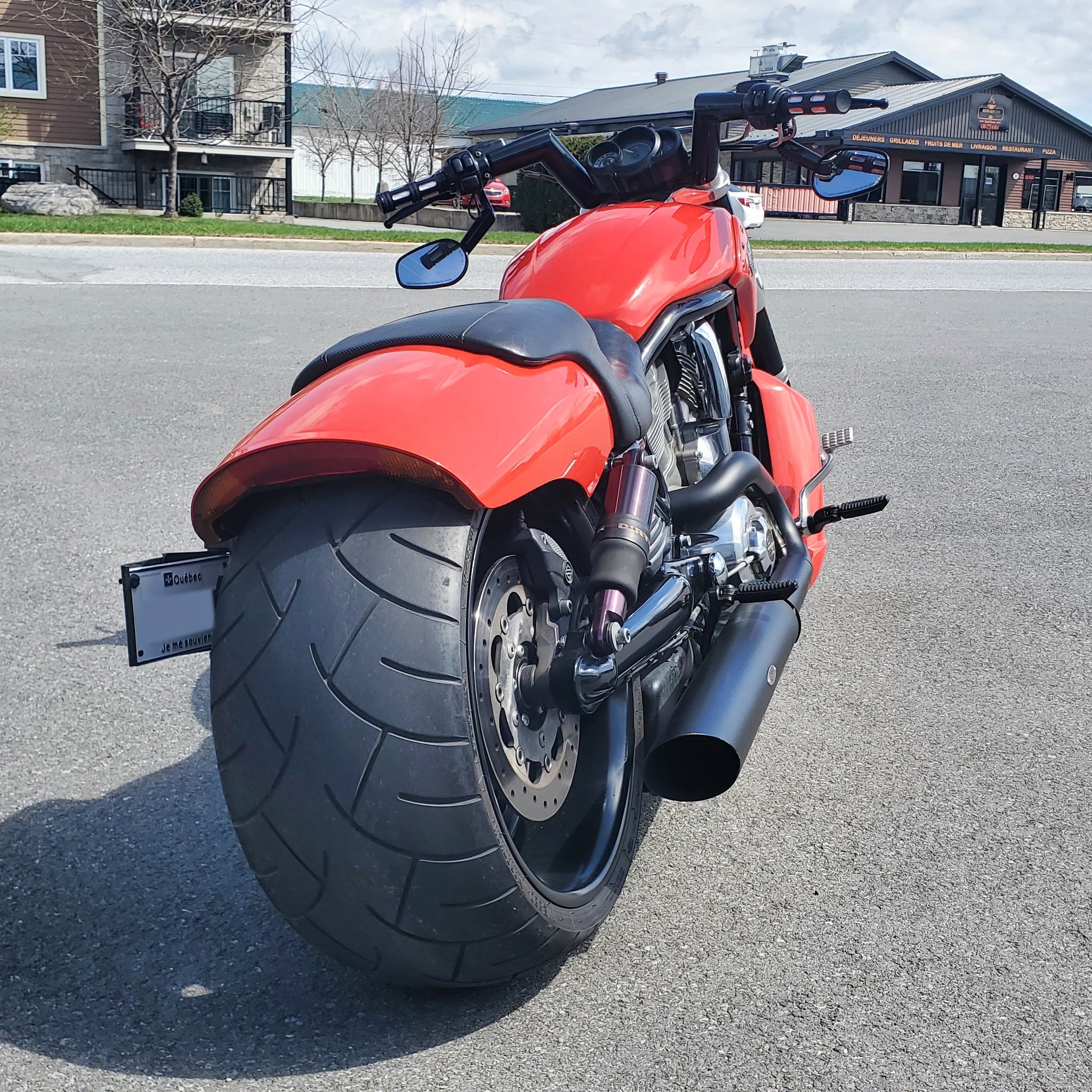

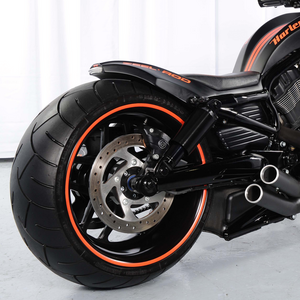

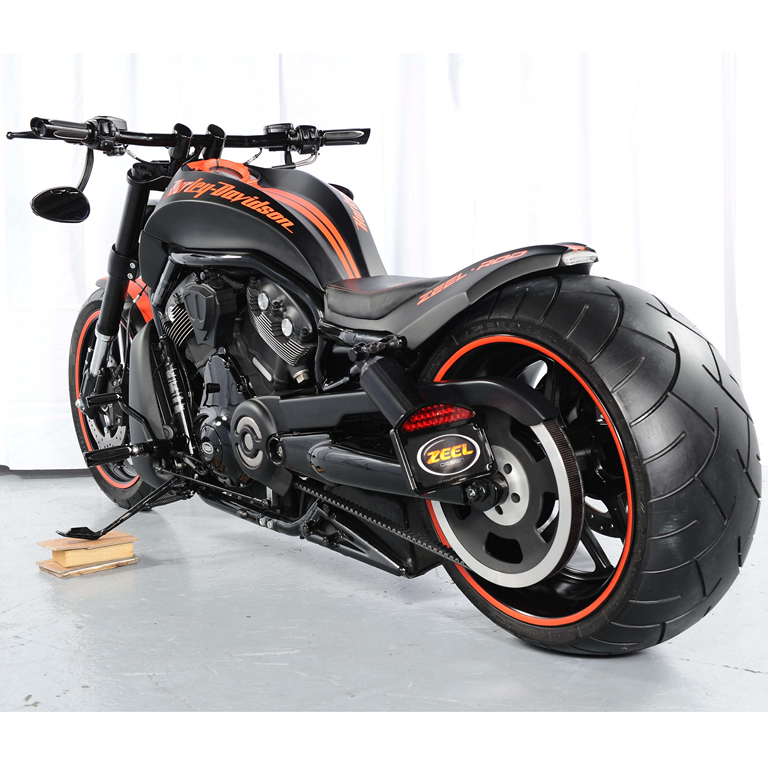

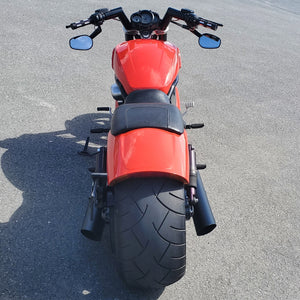

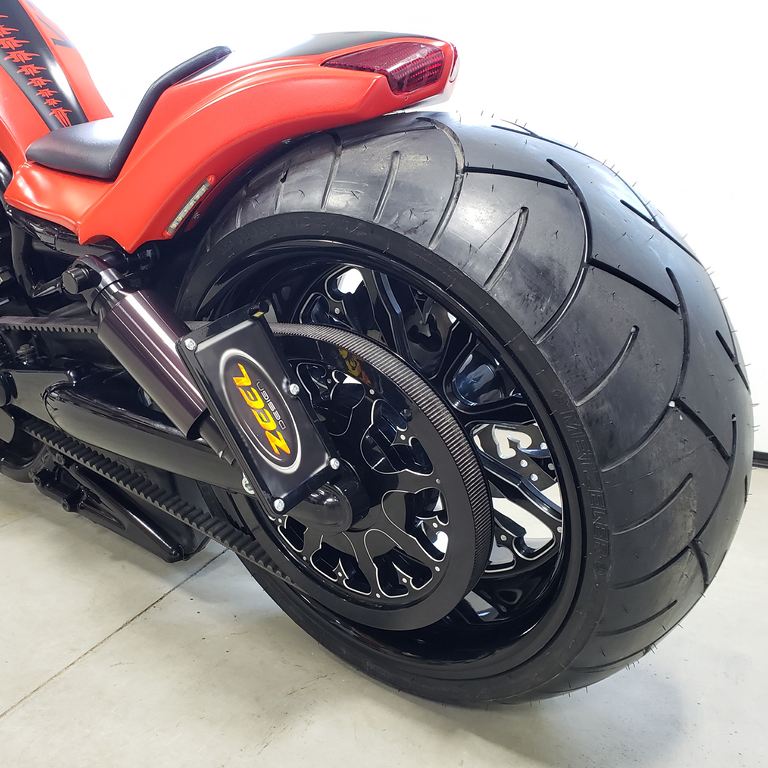

HARLEY V-ROD - 280mm Wide tire kit

Regular price $2,475.00 Sale

This enhancement kit will allow you to modify a 2007 and up V-ROD® (except vrscr) to replace your original 240 mm rear tire by a 280 mm wide tire installed on the appropriate rim size in your OEM swing arm. You can see our wheels models on the link above, OEM design replica and more.

The Swing arm DO NOT NEED to be cut and welded. Only minor buffing is required on the OEM swing arm and the belt guard need to be slightly modified/bent. We provide detailed instructions to perform this modification. Minimal mechanical skills are required.

Our 18x10 replacement wheel assembly allow the use of the original rear pulley*, brake rotor, rear axle and suspension. The kit also includes parts to offset the front pulley. *Rear Pulley and Pivot Shaft must be modified.(included in the price) You can either ship your parts to Zeel Design to perform this modification OR we can sell "New" or "Used" parts already modified.
Included:
  • 18 x 10 inch rear wheel
  • Hubs, bearings and hardware
  • Axle spacers
  • Front pulley offset kit
  • Front pulley guard offset kit
  • Black powder coat finish
  • Detailed instructions for swing arm and belt guard modification
  • Modification of your OEM pulley and pivot shaft

Contact us for any special color or design for the wheel.

This kit fits all version of 2007+ V-Rod (except vrscr) , Night Rod Special and Muscle Rod that was originally built with a 240mm tire.

This kit will not work with "280mm Avon Cobra", we suggest using a "Metzeler" tire who is a little narrower than the "Cobra" and avoid any interferences.

This tire fits the OEM fender, but you will need to modify the subframe a little for more clearance and pay extra attention to any "non OEM" parts or hardware that could interfere with the tire.
